747-400 Cockpit Comes Alive

747-400 Cockpit Comes Alive

Over the last two weeks, Simulator Solutions have worked to bring a former Cathay Pacific 747-400 cockpit back to life as a simulator using SimStack and Genuine 747-400 parts.

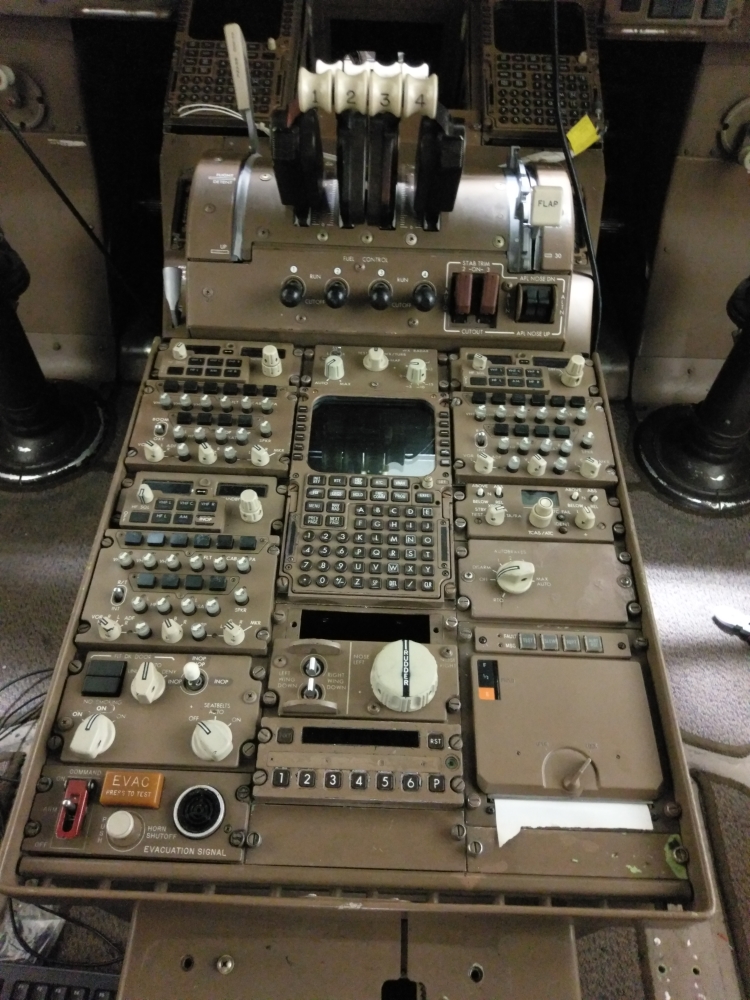

Simulator Solutions created new wiring looms connected to SimStacks to support the genuine 747-400 parts. Once onsite we installed the wiring looms and mounted the SimStacks around the cockpit. We then installed the Overhead Panels, Main Instrument Panels and Centre Pedestal panels. In addition we installed a new DC Auto Throttle motor and connected the original Aircraft Control Synchros and Throttle Resolvers to SimStack cards.

In total, we installed 26 SimStacks, 4,000 metres of wire and used 1,200 new pins in 106 cannon connectors! There are 329 Digital Inputs, 31 Analog Inputs, 272 Outputs and 416 Ground connections in this project so far.

Below are some pictures taken during the installation project in Belgium.

The Starting Point
Wiring Looms Installed
Overhead Panel SimStacks
